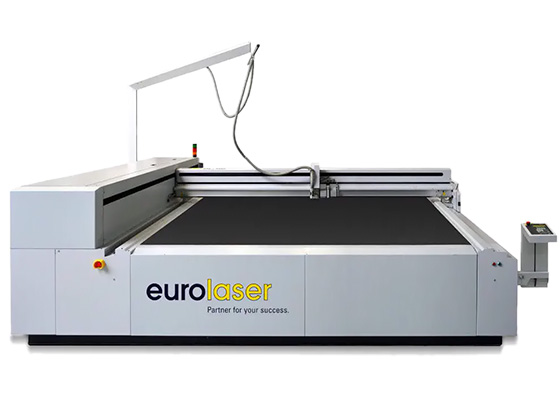

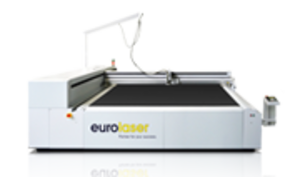

2XL Laser Cutter
Big is not big enough
- Ink Marker Module
- Exhaust and filter units
- Cooling units
By using this automatic material feed, textiles can be fed for laser cutting directly from the roll and routed after laser cutting directly to a table extension. With a high degree of connecting accuracy after a material feed cycle, sections, which for all practical purposes are endless, can be produced.
The bale material is fed via an automatic feeding unit. An feeding system edge controller ensures accurate positioning of the material. There is even an option to add a winding unit to the Conveyor System. This is used for the even winding of previously processed textiles and this accordingly results in a completely automated cutting process.
The Conveyer-Option is the ideal solution for series and mass production. It is equipped with a great package of configurations. Available for the systems M-1200, L-1200, L-3200, XL-1600, XL-3200, 2XL-3200 and 3XL-3200.
Automatic camera detection enables printed materials to be cut out precisely along the printed outline. Even copying tolerances in the printed format can be compensated by software control.
Many applications require an accurate cutting oriented to existing fiducial marks or other material references. As a respond to this need eurolaser offers an intelligent solution consisting of a camera and analysis software.
Mechanical tool heads can be installed parallel to the laser, giving you the option to use tools such as milling cutters or knives. A valuable extension to your machining options with just one system technology.
Use the laser plus two mechanical tools in parallel on one machine. The entire high-quality range of Zünd tools is available for you. Extend your machining and material options without expensive additional investments.
This optional equipment allows machining of image files and production of both 2D-images and 3D-reliefs. Engraving is possible with a resolution of up to 1200 dpi and in 256 shades of grey.
Pictures, logos, labels and much more - engraving and marking on various material surfaces.
This is an impressive option!
The compressed air controlled jet system applies ink markings to the material.
The demand for simple, economical and contact-free marking methods is growing continuously, particularly for sewing markings (clippings) in the textile manufacturing branch.
The new Ink Marker Module – an extra option that can be retrofitted - is now available for our laser cutting systems.
Suction devices are selected to match your application and the table concept of your laser system. This guarantees complete emission extraction above and below the material.
The exhaust concepts ensure consistent extraction and filtering performance. They take into consideration the laser power used, the processing surface including table concept, processing speed and choice of materials to ensure you are offered the best possible coordination.
The high-quality energy efficient cooling units are fitted with electronic temperature controllers and monitoring systems, so that they always control ideal conditions for laser beam sources, in order to guarantee constant performance.
Consistent cooling performance ensures a constant laser power which in turn provides optimum and constant cutting quality and speed. A high-quality water cooling system is therefore highly recommended for cooling a CO2 laser source.
Width (in mm/in)
4490 / 176.8
Length (in mm/in)
4000 / 157.5
Height (in mm/in)
1530 / 60.2
Working area (W x L in mm/in)
2740 x 3200 / 107.8 x 126
